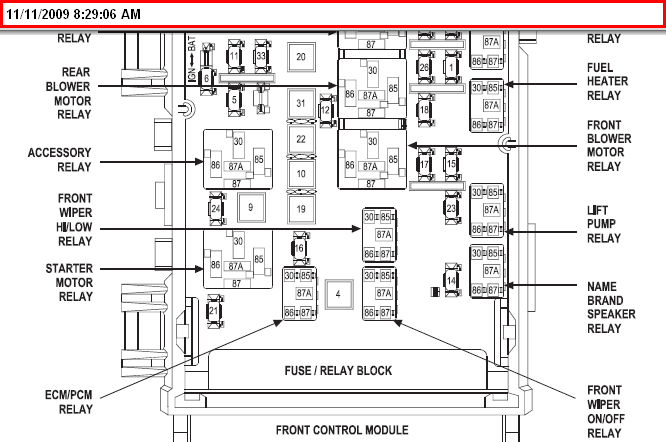

lee123 Posted September 26, 2018 Report Share Posted September 26, 2018 (edited) looking for the (transmission control relay)-(Transmission safety shutdown relay) on a 2005 voyager 2.8 auto diesel. I have uploaded an image of my fuse/relay box can any one help lee Edited September 27, 2018 by lee123 Quote Link to comment Share on other sites More sharing options...
0 lee123 Posted September 27, 2018 Author Report Share Posted September 27, 2018 is it the ecm/pcm relay?? please help.... Quote Link to comment Share on other sites More sharing options...
0 bignev Posted September 27, 2018 Report Share Posted September 27, 2018 (edited) I don't know on yours, have you got the rest of that picture? Only half the box on there. I'm on petrol so didn't spot if I've got a "Transmission" shut down, but got an EATX one?? Not got time to check right now sorry. Can you see "TCM" anywhere? But it could be a combined unit on yours with the Power Control Module relay..... so the one you mention may be it - swap another one that you know works out of another component. Edited September 27, 2018 by bignev Quote Link to comment Share on other sites More sharing options...
0 lee123 Posted September 27, 2018 Author Report Share Posted September 27, 2018 found it. on the eaxt its was not in the fuse/relay box. its on the side of the slam panel. thanks for replying. Quote Link to comment Share on other sites More sharing options...
0 federal11 Posted January 14, 2019 Report Share Posted January 14, 2019 Thanks for your aport!!! Please send photo locations this is relay i have same problem and no see this is relay Thanks Quote Link to comment Share on other sites More sharing options...
0 Dudge Posted February 13, 2019 Report Share Posted February 13, 2019 Hi, I'm also looking for the TCM relay. I've found a great vid on youtube to help diagnose the problem I've got, but it's based on petrol cars where the relay is in the fuse box. On diesels, it isn't. I've looked at the slam panel, but the ones that I can see are marked in the documentation I've found as 3 of them being for the cooling fans & the others for the glow plugs. Any help would be VERY much appreciated..... Quote Link to comment Share on other sites More sharing options...
0 ahmet Posted July 17, 2020 Report Share Posted July 17, 2020 I had similar problem with p0700 in limp mode in my 2.8 crd. on recommendation of one of my friends who owns a voyager IV, I have inter changed some of the relays in the front of hood above the radiator. the engine light disappeared and tcm problem solved. I thought they were for the AC fan but they are also related with TCM. strange. Quote Link to comment Share on other sites More sharing options...
0 andyb2000 Posted August 10, 2020 Report Share Posted August 10, 2020 The TCM relay on the mk 4 CGV diesel's is supposed to be on the slam panel, HOWEVER there has been one I saw that had it on the loom almost under the battery tray. All I can assume is that at some point it fell off/came off the slam panel and was taped there, so look all around the area where the relays are on the front panel, follow the loom down as that's also where it feeds down to the connector for the autobox itself, you'll find it either on the slam or down that way on the loom. Good luck and take photos. Quote Link to comment Share on other sites More sharing options...
