Radiator Upper And Lower Hose

[gavoni]

Hi there,



I'm replacing the head gasket and other worn parts on my Chrysler Voyager 2.0L 16V 98KW gasoline, year 1996 , VIN: 1C4GYN2C7VU106456 .



I'm having troubles finding the right P/N of the two main water hoses connected to the radiator. The local dealer unexpectedly has wrong drawings for that car.

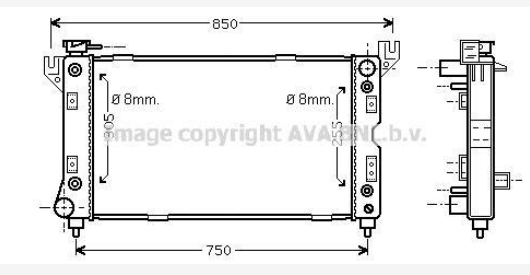

I attach a picture of it, hoping that someone may have this piece of info.



The radiator is non-original part, AVA Deutschland, CR2029.

My dream would be to get somewhere a full manual with every single P/N of this car... including these two hoses!



I'd appreciate any help on this :-)

Any clue?



Thanks a lot,



Best regards

Giulio

Edited September 14, 2017 by gavoni

[mikebh8]

Hi, the link I posted didn't help?

I'll have a look again tomorrow as I turned off the pc.

Edited September 13, 2017 by mikebh8

[gavoni]

Yes mikebh8, thanks to your link I found a mine of details in there, but most of them are written in russian and I couldn't find the specific details I need...

I probably found the right service manual at manual.co, even it's for a year 1998, but I don't see any part numbers for the radiator and hoses...

Thanks again for your check :-)

Giulio

[mikebh8]

...strange I downloaded few files from there, all in English.
